Ladder Track System

Itake Corporation has been authorized by TESS (a RTRI Group, offering technologies to a wide variety of industries acquired through research and development at the Railway Technical Research Institute) as a manufacturer of Ladder Sleepers since December 2008. We are participating in promotion of Ladder Track System business not only as a seller but also as a manufacturer. Consequently, stable supply is realized.

Itake is also dealing with installation machineries and track maintenance equipment. Our experienced engineers offer from the optimum structure to the appropriate installation equipment for Ladder Track System.

In order to achieve the high level of quality and stable supply of Ladder Sleepers, Itake proposes the optimum track structure & installation method or develops the appropriate installation equipment. All for the highest safety, maintenance minimum, and ecological performance.

Installation of Ladder Sleepers
[Ballasted Ladder Track]
  • Minimizing the maintenance for normal/tunnel sections or even roadbeds in bad conditions.
  • Solution for track irregularity at bridge approach.
  • Buckling free enabling continuous welded rail at sharp curve .
  • Substantial prolongation of surfacing cycle at level crossing area.

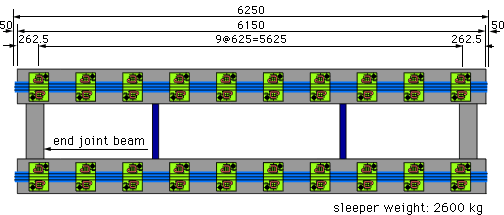

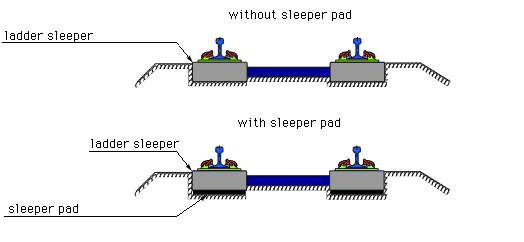

Ballasted ladder Track
[Floating Ladder Track]
  • Minimizing vibration and noise.
  • Shortening remarkably the period of time necessary for track installation work.
  • Reducing construction cost for viaduct by light-weight & vibration reducing track.

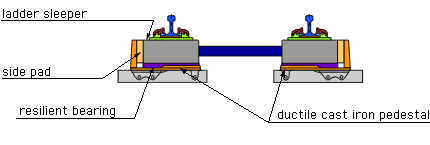

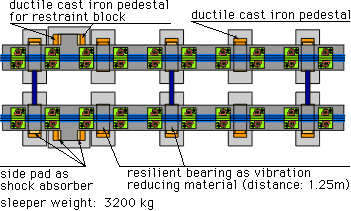

Floating Ladder Track with Ductile Cast Iron Pedestal
Floating Ladder Track with Ductile Cast Iron Pedestal

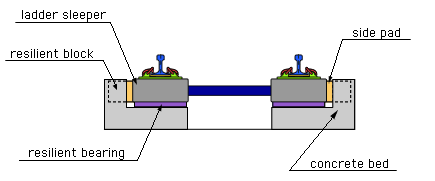

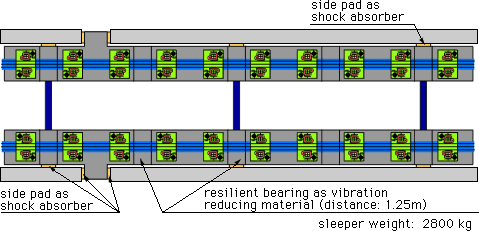

Floating Ladder Track with Concrete Bed
Floating Ladder Track with Concrete Bed
